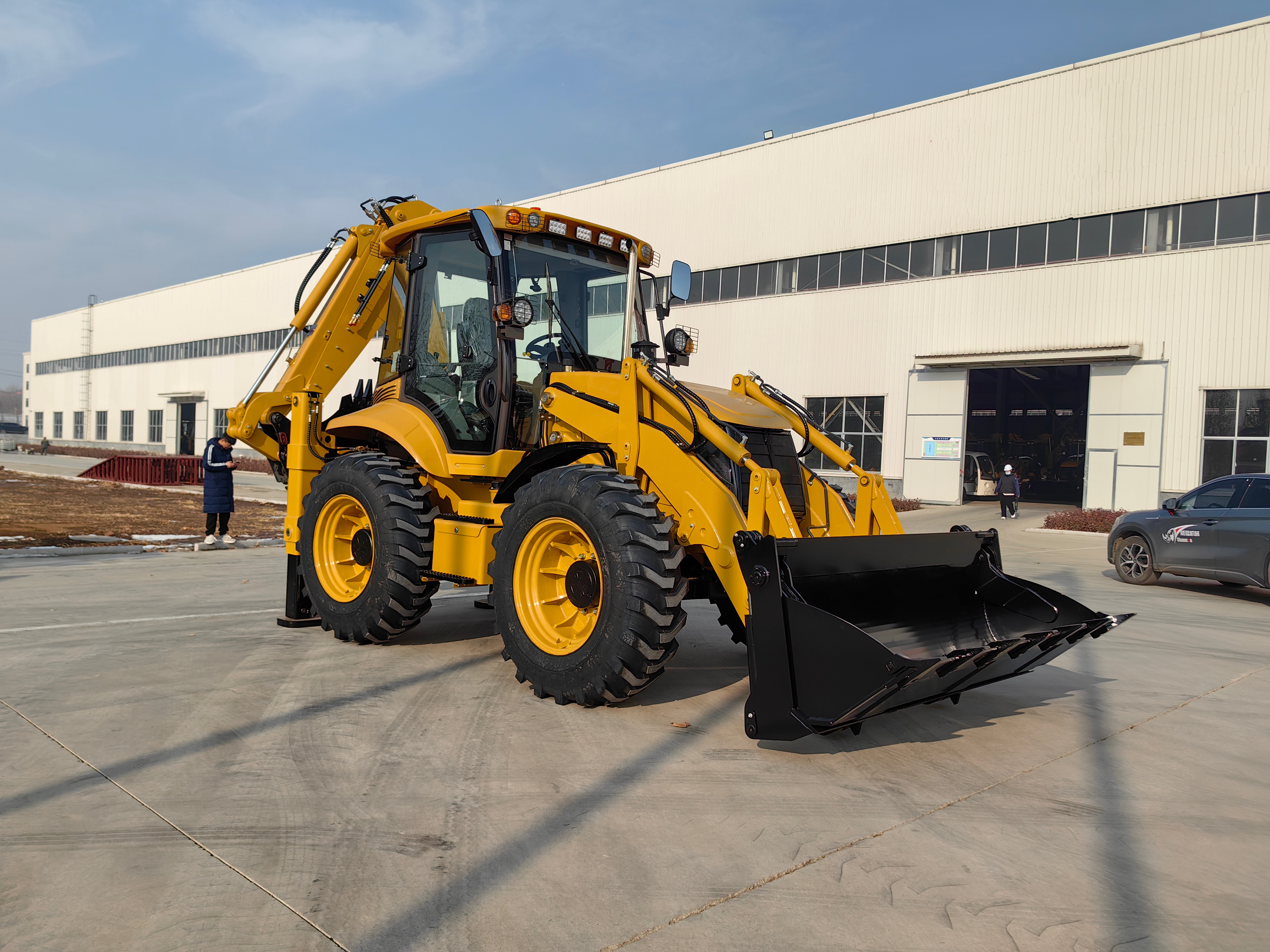

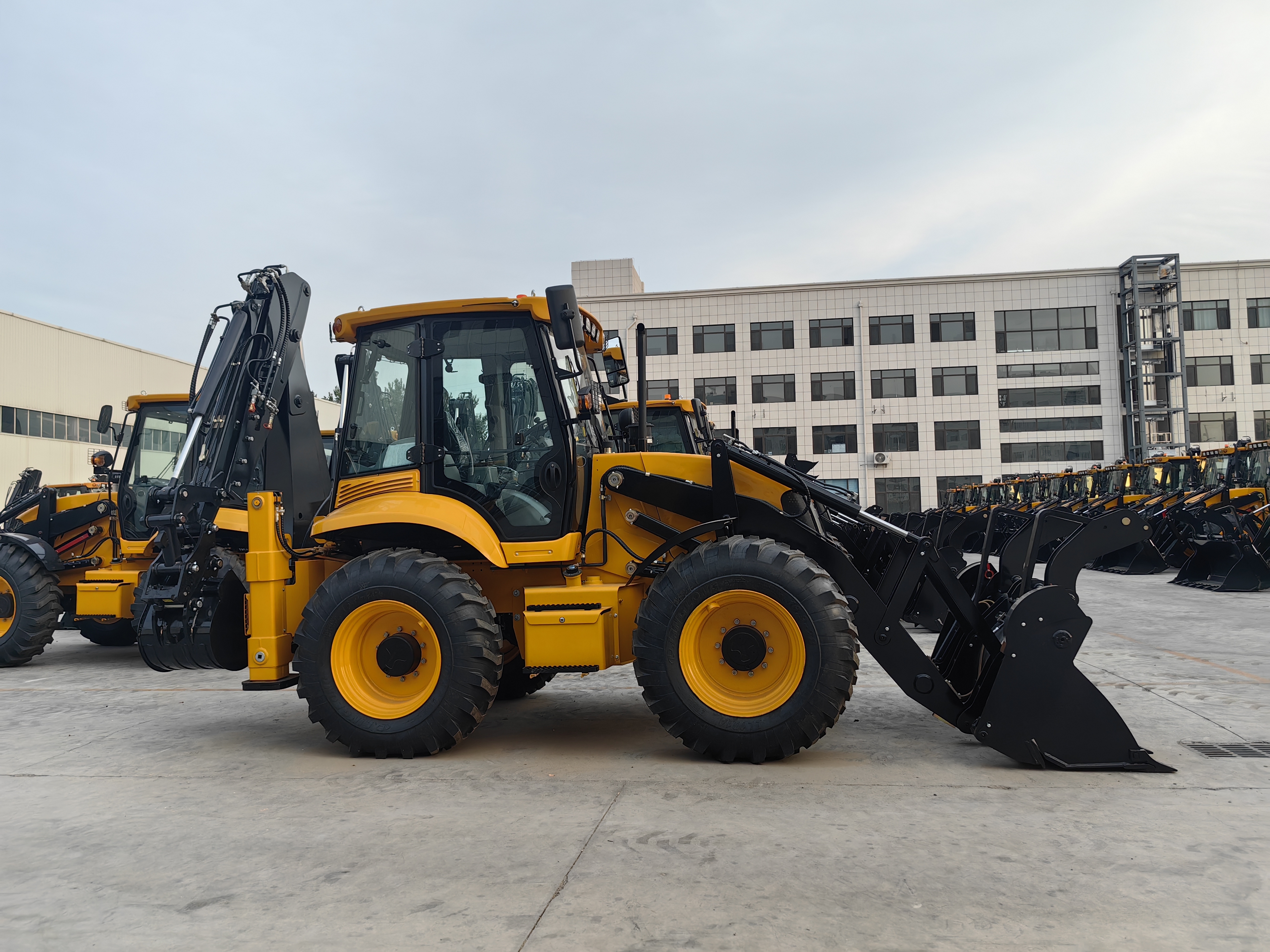

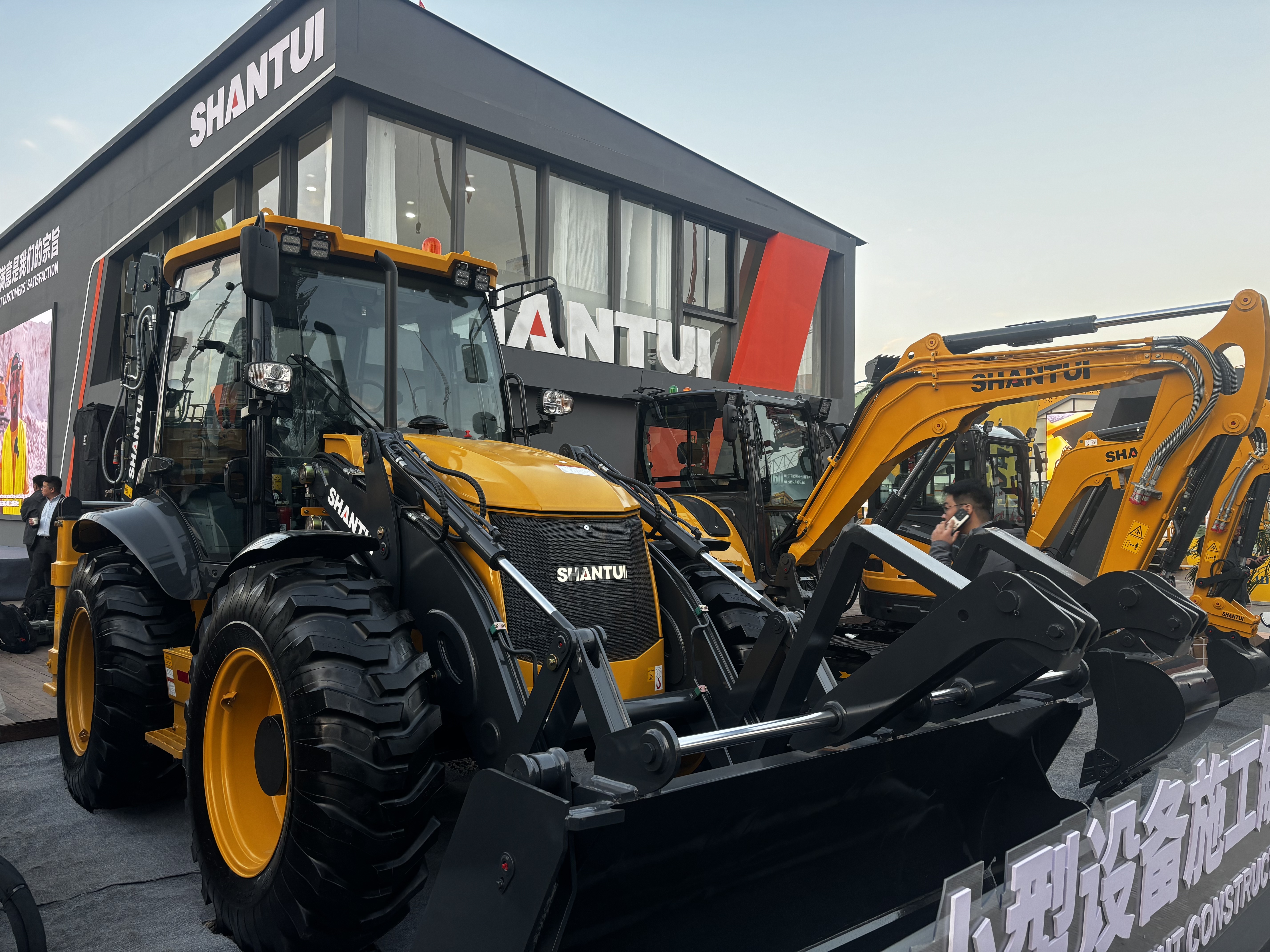

Overall Operating Weight: 10500KG
Overall Size LxWxH:6450x2530x3120mm
Engine: China Yuchai engine YC4A105Z-T20, diesel type, (75KW/102HP), Cummins engine is avaliable
Displacement: 4.8L
Steering system:hydraulic steering
Min. Ground Clearance: 450mm
Loader Bucket Capacity: 1.2m3
Loader Lifting Capacity: 2500KG
Loader Dumping Height: 3050mm
Loader Dumping Distance: 870mm
Loader Digging Depth: 52mm
Backhoe Capacity: 0.3 m3
Backhoe dumping height: 4050mm
Backhoe Max. Digging Depth: 3820mm
Backhoe swing angle:180°
Gearbox:Mechanically Operated Hydraulic Synchronized Shift, forward and 4 reverse gears
Tires: 16.9-28
With ROPS&FOPS Cabin with A/C，Mechanical Operating Levers, Back Auxiliary Hydraulic Pipes and Hoses, Pre- heating System，4-Wheel Drive,4-Wheel Steer, Crab Steering Mode, Triple Valve and Pipeline, H Type Supporting Legs,Water-proof Plug etc.
Overall dimension |
Operating weight |
10050KG |
Overall dimension(L×W×H) |
6450×2530×3120mm | |
| Wheel base | 2335mm | |
| Wheel tread | 2050mm | |
| Ground clearance | 450mm | |
| Performance | Loader bucket capacity | 1.2m³ |
| Loader breakout force | 47KN | |
| Loader lifting capacity | 2500KG | |
| Loader Dumping height | 3050mm | |
| Loader Dumping reach | 870mm | |
| Loader digging depth | 52mm | |
| Backhoe bucket capacity | 0.3m³ | |
| Backhoe bucket digging force | 50KN | |
| Backhoe swing angle | 180° | |
| Backhoe dumping height | 4050mm | |
| Backhoe max digging depth | 3820mm | |
| Max. traction force | 86KN | |
Engine |
Model |
Yuchai YC4A105Z-T20 |
Type |
Inline,direct injection,water-cooled,turbocharged,4-stroke | |
| Cylinder-Inner diameter*stroke | 4-108×132 | |
| Rated power | 75KW | |
| Rated speed | 2200r/min | |
| Min. fuel consumption | 230g/kw.h | |
| Max. torque | 400N.m | |
| Displacement | 4.8L | |
Steering system |
Type |
hydraulic steering |
Diverter model |
BZZ5-250 | |
| Pump delivery | 63ml/r | |
| Steering angle | ±35° | |
| Min. turning radius | 6950mm | |
| Driving axle | Model | WZL100DF |
| Manufacturer | China axle | |
| Max. load of front axle | 13T | |
| Max. load of rear axle | 13T | |
Transmission |
Gearbox |
Mechanically Operated Hydraulic Synchronized Shift |
| Model | ZL15 | |
| Gears | forward and 4 reverse gears | |
Hydraulic torque converter |
YJ320 | |
| Inlet pressure | 0.4-0.65Mpa | |
| Outlet pressure | 1.6-1.9Mpa | |
| Cooling mode | oil-cooling pressure circulation | |
| Pump delivery | 40ml/r | |
tyre |
Front/Rear model | 16.9-28 |
| Front tyre pressure | 0.35Mpa | |
| 后轮气压 Rear tyre pressure |
0.35MPa | |
| Travel speed | 36Km/h | |
| Brake system | Service brake | Gas pushed oil, built-in-selfregulation,self-balance |
| Parking brake | Manual brake | |
| System pressure | Loading hydraulic system | 20Mpa |
| Digging hydraulic system | 20Mpa | |
| Steering hydraulic system | 14Mpa |
