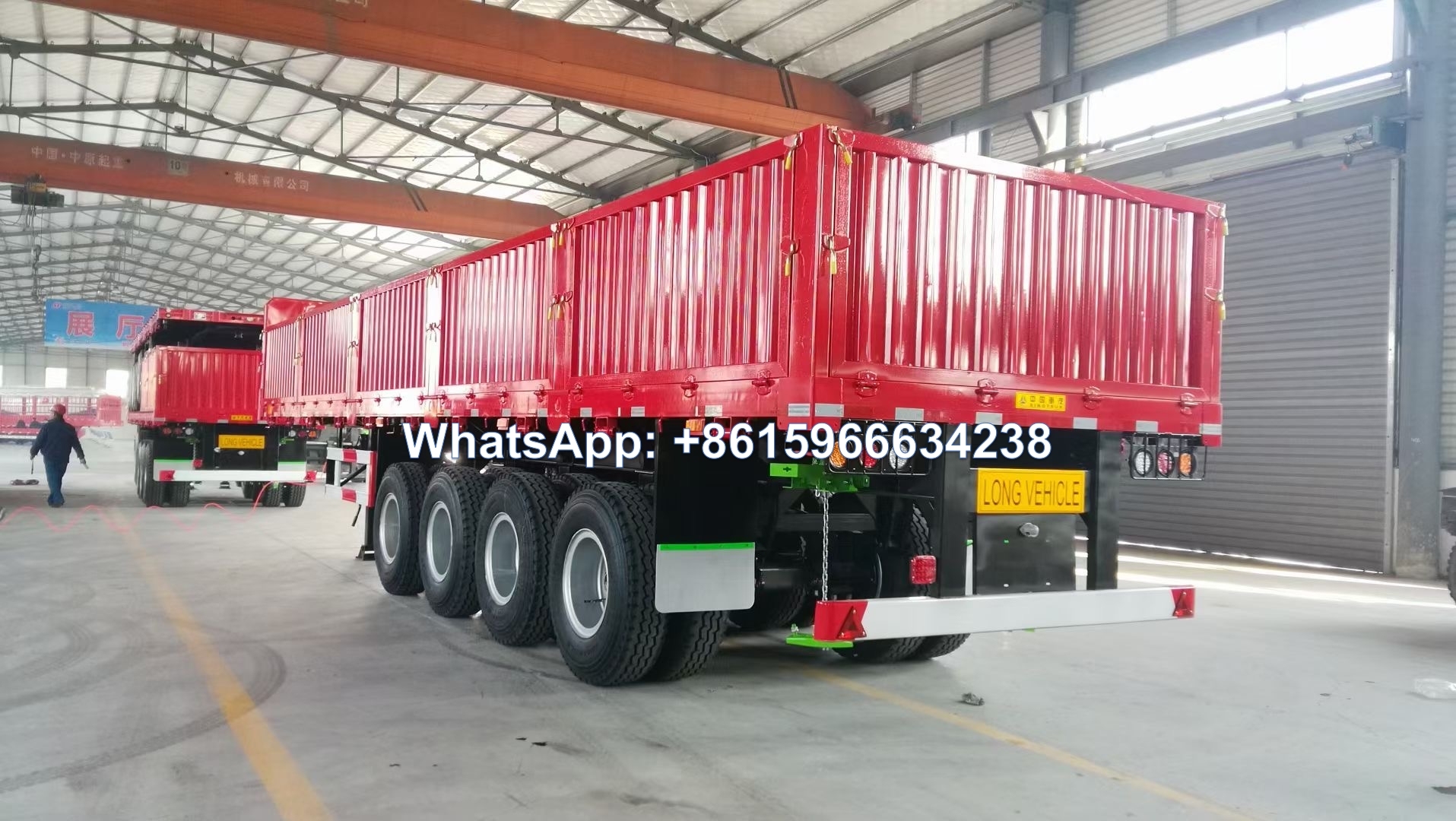

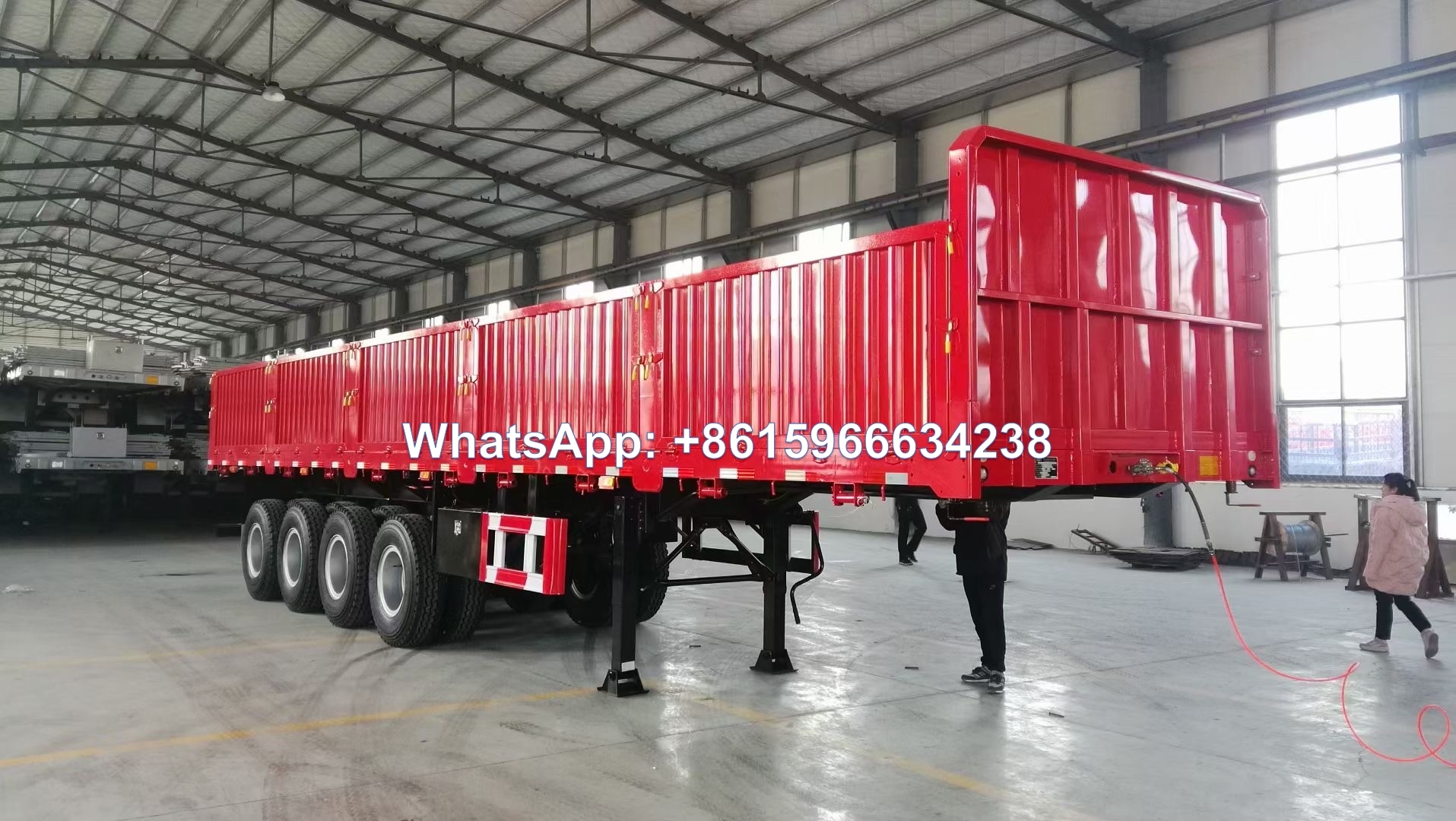

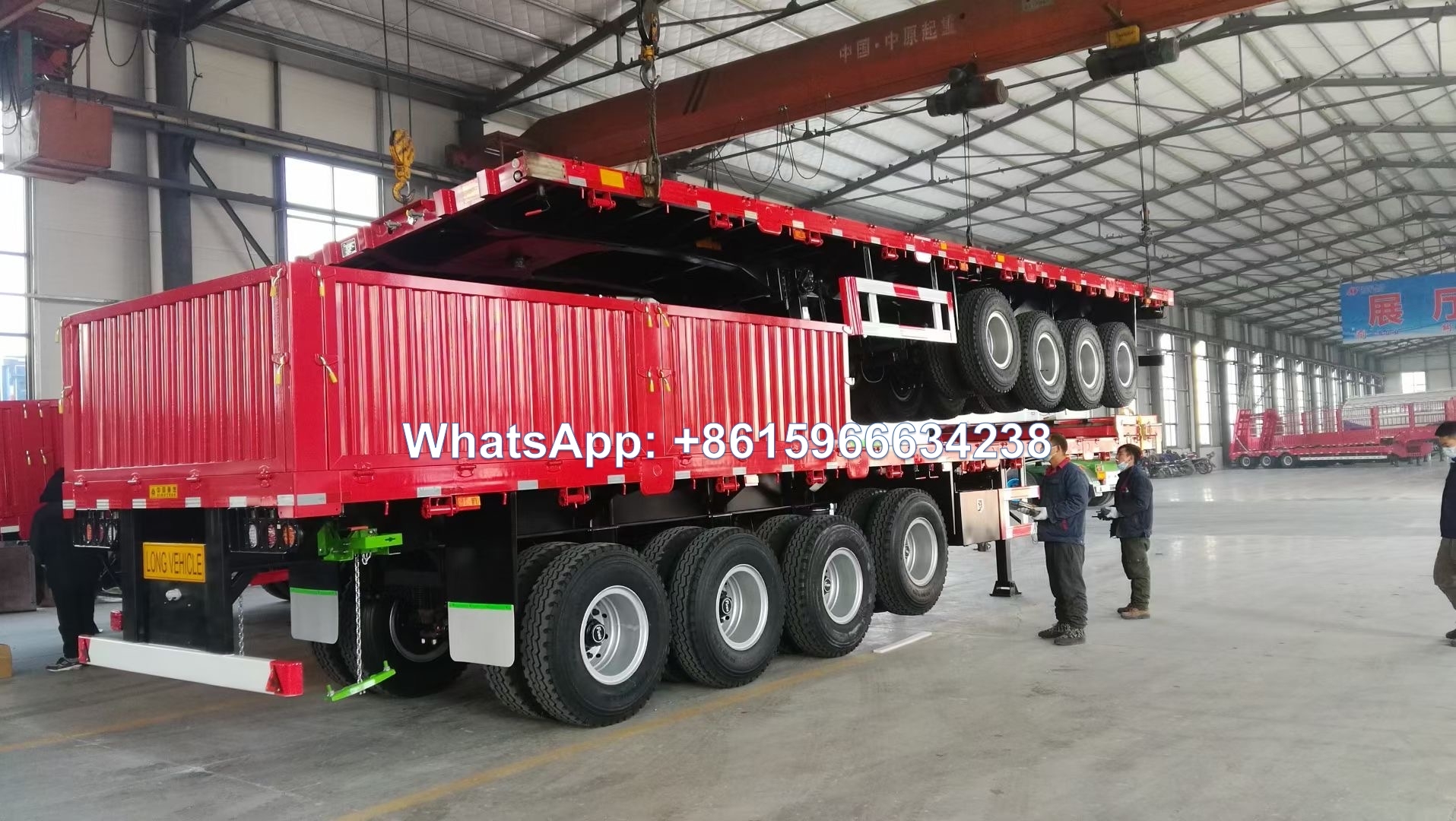

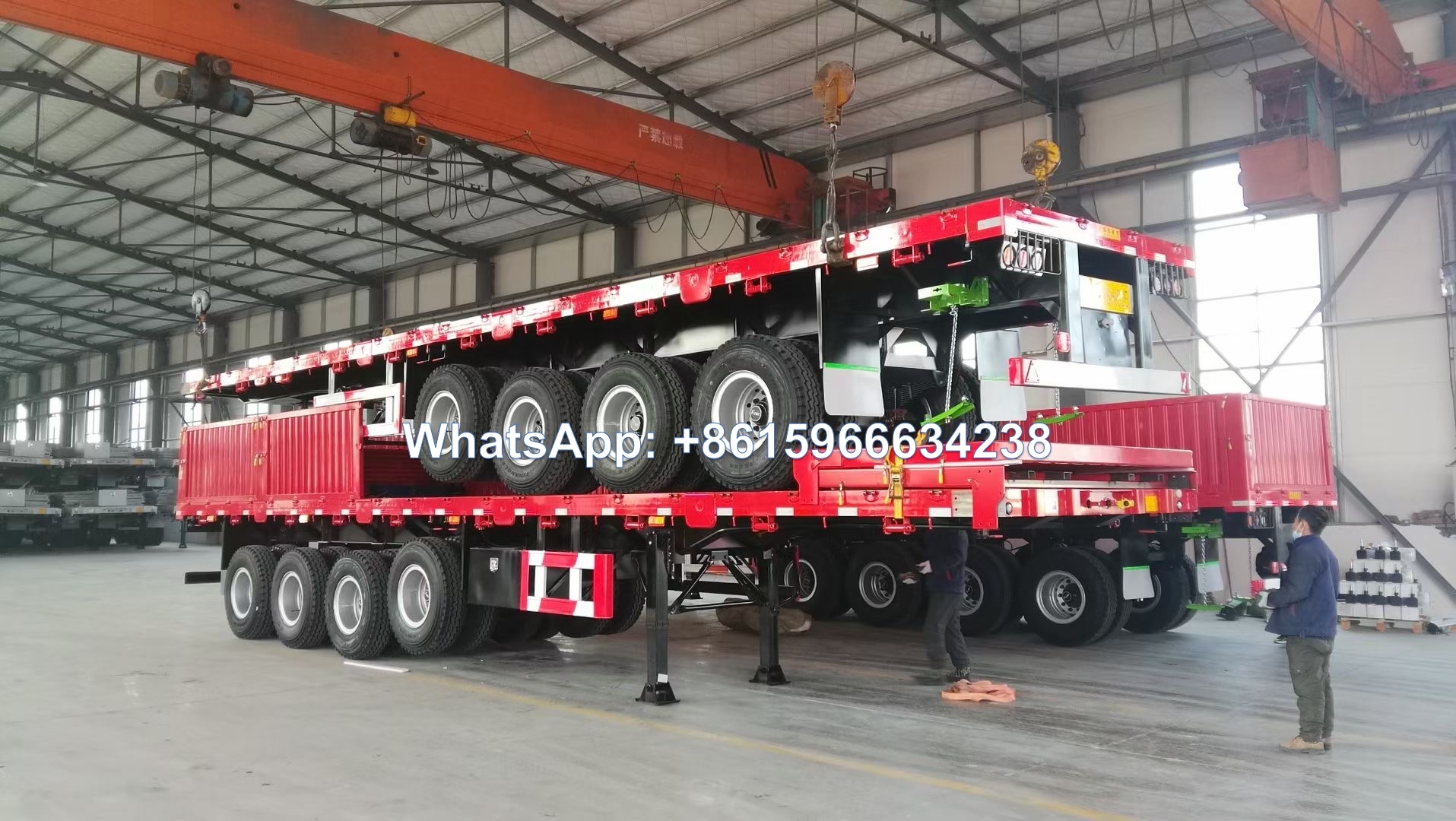

Sinotruk 4 axle 60 tone sidewall cargo trailer

Sinotruk 4 axle 60 tone sidewall cargo trailer Material: Steel Size: 14000*2600*3000mm, side wall height 1000mm Max Payload: 60T Place of Origin: Shandong, China AXle No.&Brand: 3 Axle FUWA/BPW/SAF Suspension: Mechanical / Air King Pin: 2"(50mm)or
  • Sinotruk 4 axle 60 tone sidewall cargo trailer
  • Sinotruk 4 axle 60 tone sidewall cargo trailer
  • Sinotruk 4 axle 60 tone sidewall cargo trailer
  • Sinotruk 4 axle 60 tone sidewall cargo trailer
Description


4 Axles Sidewall Cargo Trailer for sale


Trailer Name  4 Axles Side Wall Flatbed Truck Semi Trailer for sale
 Dimensions  14000mm*2600mm*3000mm, side wall height 1000mm
 Loading  30T, 40T, 45T, 50T, 60T
 Tire  11.00R20, 12.00R20,12R22.5, 385/65R22.5 Triangle/Hankook/  Bridgestone brand
 Material  Main beams Q345B, upper flange:14mm, middle:8mm, down:16mm
 Axles   13T/16/20T BPW or FUWA brand
 King Pin  2 inch or 3.5 inch JOST Brand
 Brake System  WABCO Valve with big chamber
 LandingGears  JOST brand two-speed, Manual operating heavy duty 28ton
 Suspension  Bogie suspension, spring suspension, Air suspension
 Floor  3mm,4mm,6mm diamond steel plate
 ElectricalSystem  24v, 7core socket, lights according to European standards (suitable for all market)
 Side panel  Height 600mm, 800mm, 1000mm
 Twist lock  8 or 12 sets
 Other parts  1 tool boxs, 1 spare tire carrier
 Functions  Transport container, loose cargo, bulk cement, bulk rice,etc







1-It has flat type, concave beams type and tyre appear type.The front longitudinal adopts flat type or goose neck type. Its chassis is ladder type,longitudinal beam section is H-shaped. It has good rigidity and high strength.



2-Low platform is chassis makes a stable transportation. It is suitable for transport different kinds of engineering equipment,large equipment and steel structures.



3-Using three axle balanced type, two axles balanced type or rigid axle suspension.Putting the balanced between the front and rear plate spring and make the same change of the front and rear spring comber and the same load condition
