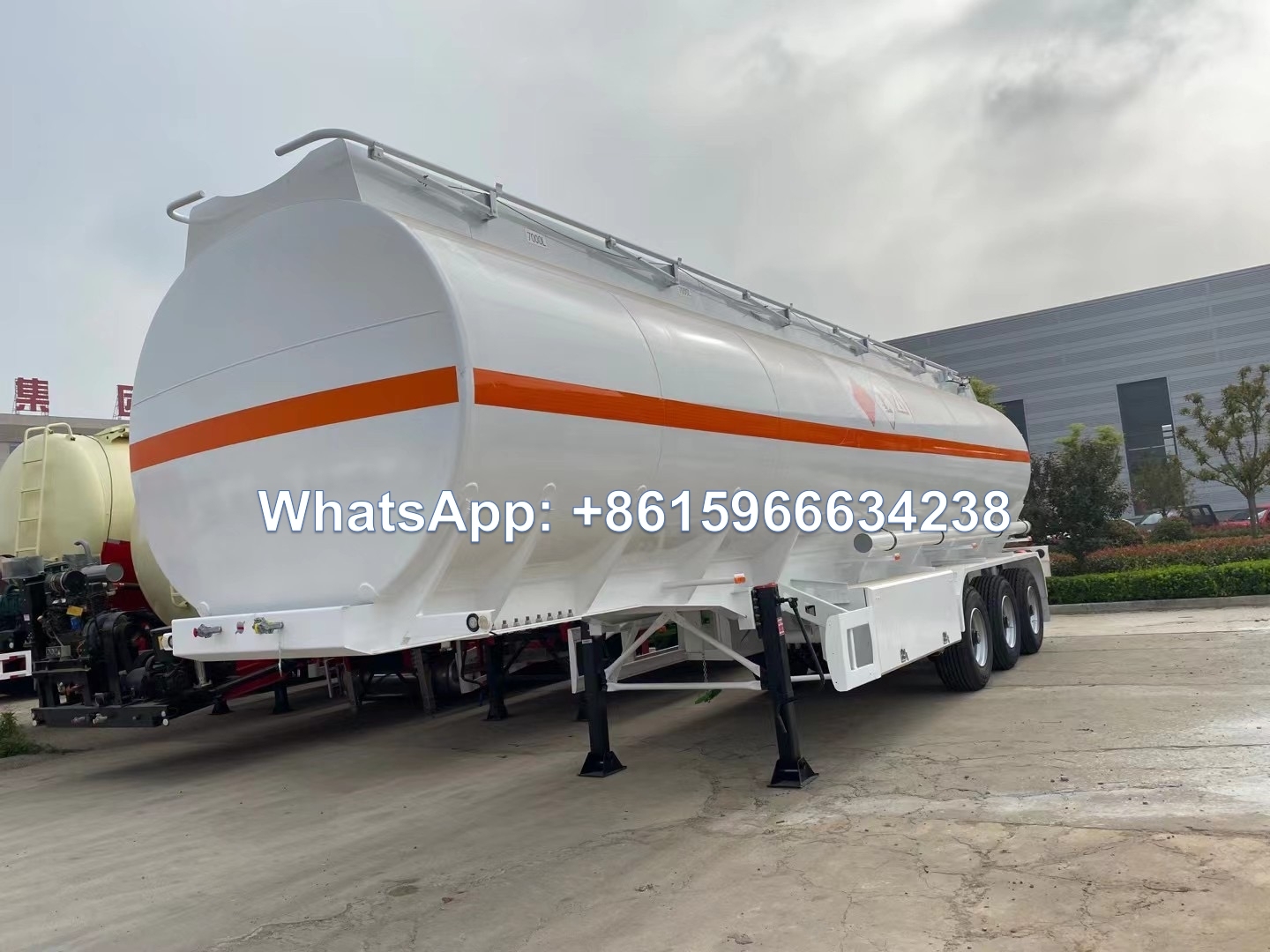

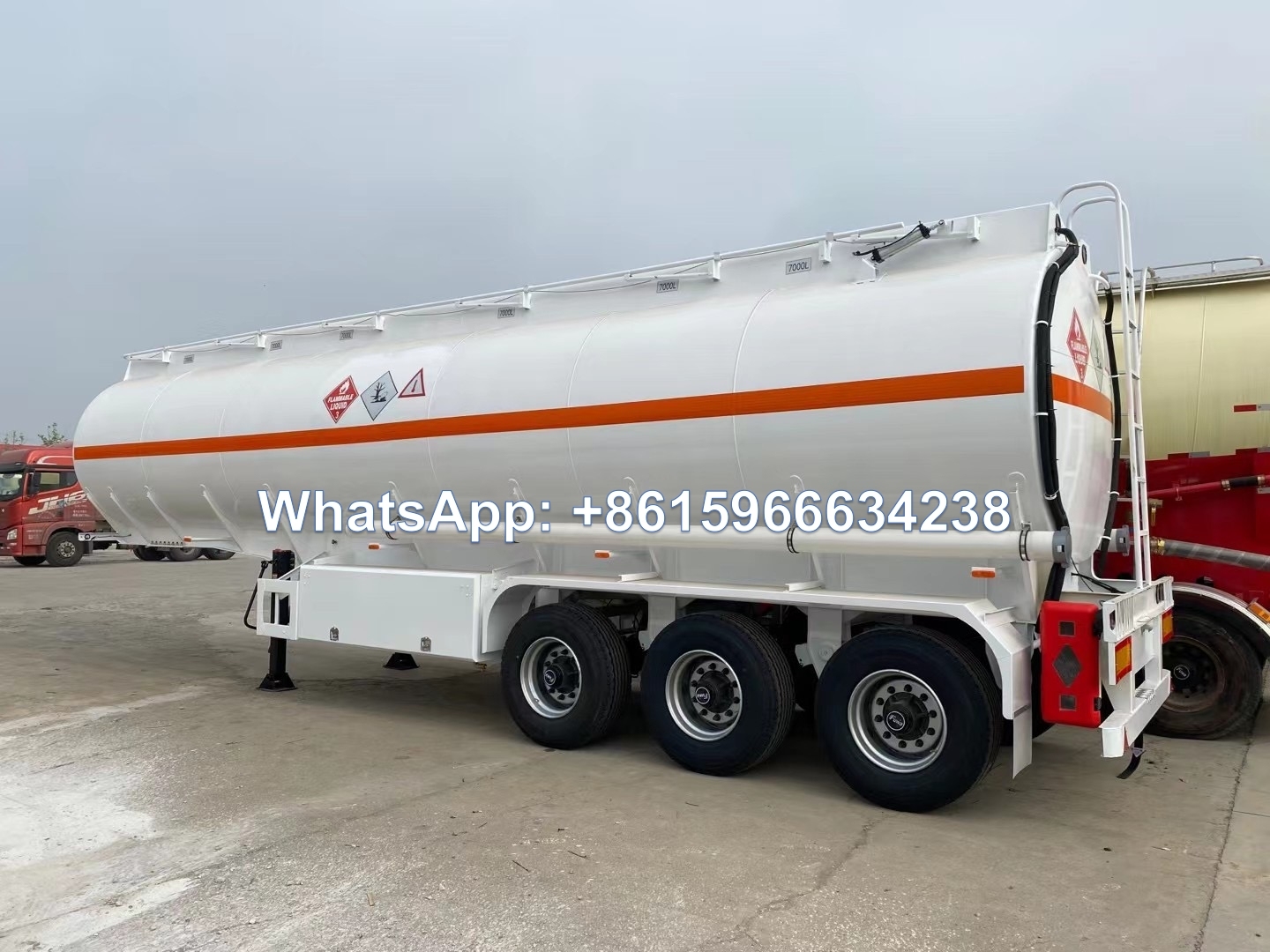

Sinotruk high quality 3 axle Fuel Tanker Trailers 45000Liters sale
|
Dimension and Weight |
|
|
Overall Dimension(mm) |
11800x2500x3800mm |
|
Wheelbase |
7,500mm+1,310mm+1,310mm |
|
Payload |
40,000kg |
|
Tare weight |
10,000kg |
|
G.V.W.R. |
50,000kg |
|
Function |
transport Fuel, Oil, Diesel |
|
Tank |
|
|
Volume |
45000L |
|
Thickness(mm) |
Material Q235 carbon steel Tank body and separate compartment plate: 5mm Dish end plate: 6mm |
|
Welding standard |
All welding are to be done by qualified welder per applicable national standard |
|
Compartment |
5 compartments ( 5*9000L ) |
|
Manhole cover |
5 units Safety manhole with breath valve, Aluminum, diameter 500mm. |
|
Discharge valve |
5 units 4 Inch |
|
Bottom valve |
5 units 4 inch Pneumatic aluminum valve, 1pcs, Henghe Brand |
|
Discharge pipe |
5 seamless steel tube, 6m |
|
Tanker body test |
Hydrostatic test to 5 psi (35 Kpa) on each compartment |
|
Running System |
|
|
Axle |
FUWA brand, 3Axles, 13ton |
|
Axle Number |
Three |
|
Tire |
12R22.5, 12 pcs. Taitong brand |
|
Rim |
9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs |
|
Suspension system |
Mechanical Suspension |
|
Steel Spring |
10/10/10 leaf spring with 90mm(W) *13mm(thickness) |
|
Electrical System |
Chinese standard 24V lighting system |
|
Brake system: |
Dual line pneumatic brake, SAE hose and connector,no ABS |
|
Brake air chamber |
6 units T30/30 spring brake chambers |
|
Emergency relay valve |
Wabco relay valve |
|
Tire Type and quantity |
1200R22.5 12units |
|
Traction/King Pin |
2 and 3.5 removable Kingpin, bolted in type 500mm from the front face of the front bolster |
|
Landing Gear |
FUWA brand |
1-It has flat type, concave beams type and tyre appear type.The front longitudinal adopts flat type or goose neck type. Its chassis is ladder type,longitudinal beam section is H-shaped. It has good rigidity and high strength.
2-Low platform is chassis makes a stable transportation. It is suitable for transport different kinds of engineering equipment,large equipment and steel structures.
3-Using three axle balanced type, two axles balanced type or rigid axle suspension.Putting the balanced between the front and rear plate spring and make the same change of the front and rear spring comber and the same load condition
Our major products are:container semi trailer,dump trailer,tanker trailer,bulk cement semi trailer,car carrier semi trailer,flatbed semi trailer ,lowbed semi trailer,side wall semi trailer ,store house bar semi trailer and so on.
Contact me in 24 hours, I can serve you at any times!
We are professional manufacturer. So we always focus on our quality.
