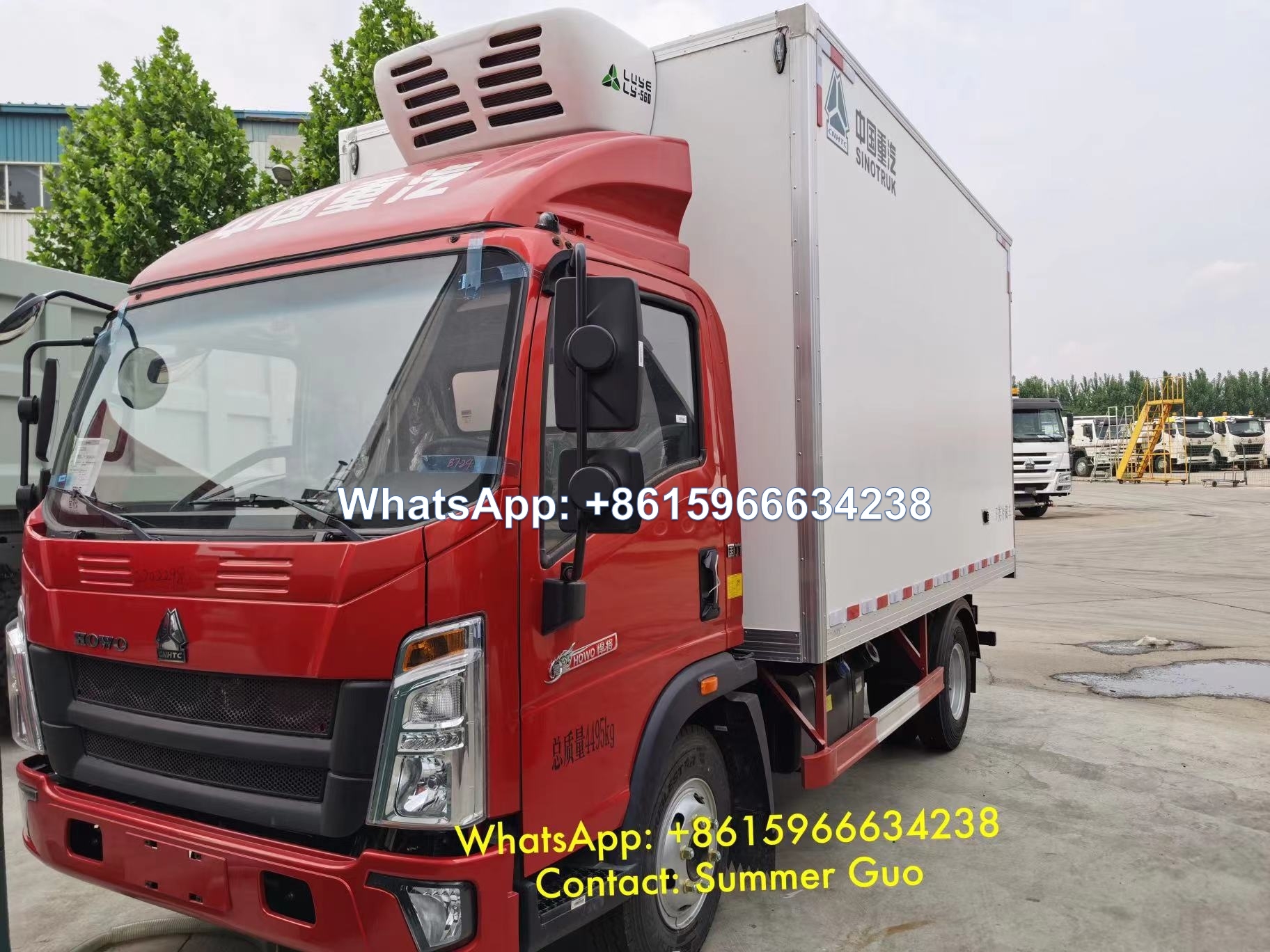

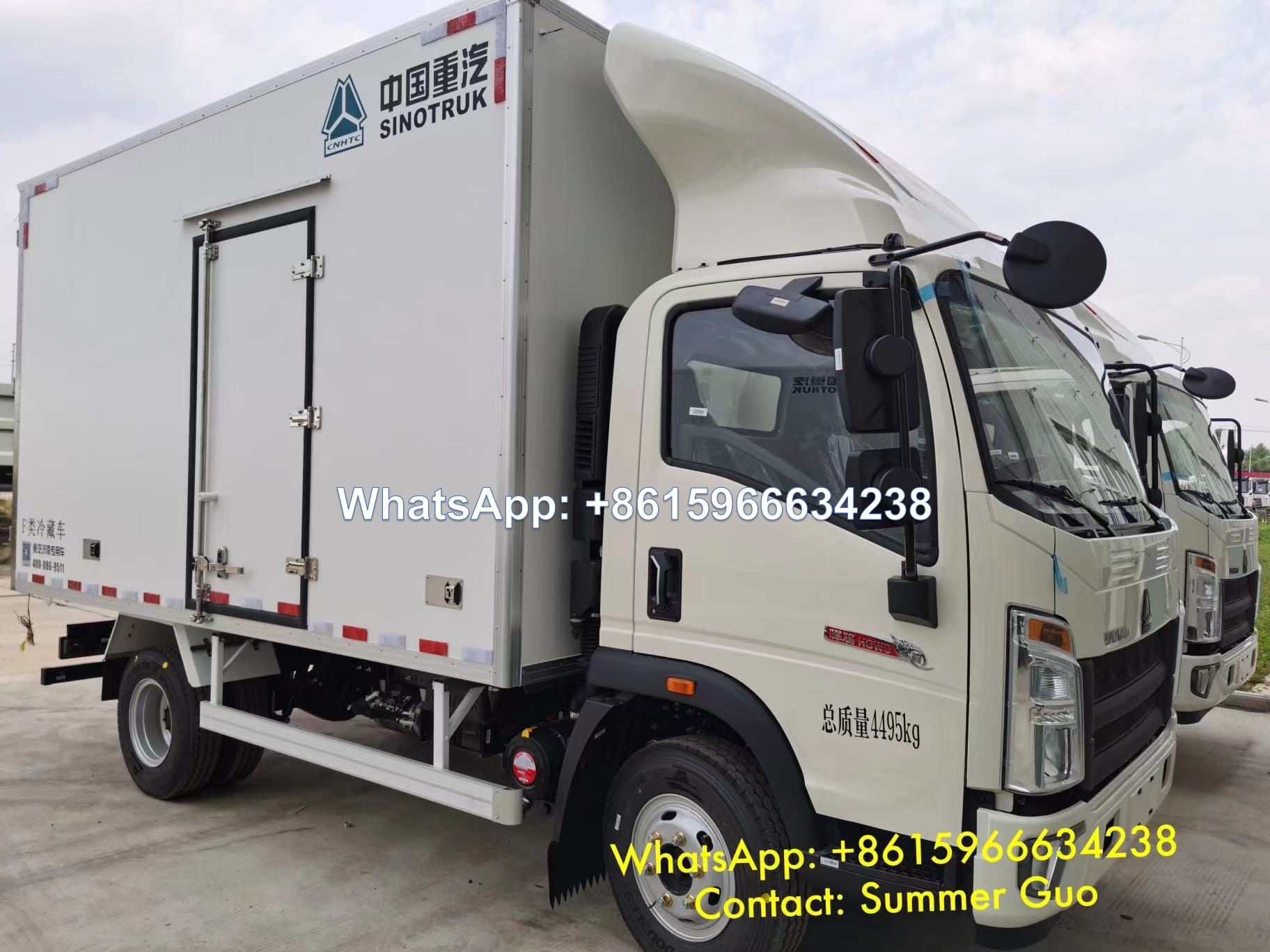

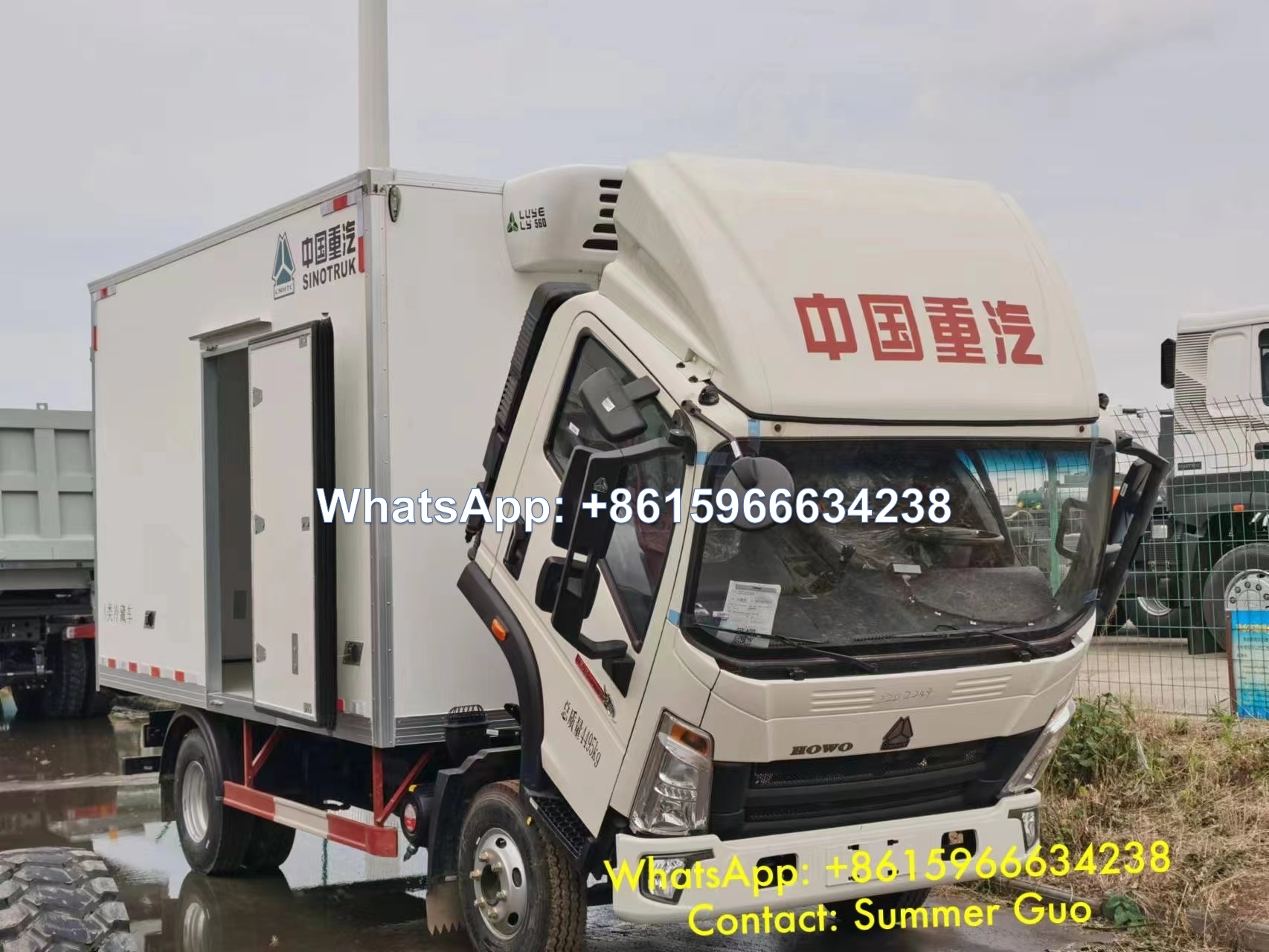

Specification of 5ton Howo 116hp 4*2 refrigerated truck |
||
|
Drive Model |
RHD or LHD |
|
|
Cab |
Inside & outside |
Wider comfortable 2080mm single cabin,with A/C |
|
Vehicle Main Dimensions |
Dimensions(L x W x H)mm |
6200*2400*3300 |
|
|
Wheel base (mm) |
3360 |
|
|
Axle load(front /rear)(ton) |
2.4/ 4.2 |
|
|
Suspension |
9/12+9B |
|
|
Fuel tank |
220L iron tank |
|
Max. driving speed(km/h) |
95 |
|
|
Engine
|
Model |
YN4102QBZL |
|
MAX Power(HP) |
116 |
|
|
Displacement(L) |
3.76 |
|
|
Maximum output power |
85kW |
|
|
Fuel |
Diesel |
|
|
Engine form |
Vertical, inline, water cooled, four stroke, direct injection |
|
|
Cylinder Number |
4 |
|
|
Engine net weight(kg) |
380 |
|
|
Cylinder x stroke(mm) |
110*112 |
|
|
Maximum torque(N.m) |
500 |
|
|
Rated speed(rpm) |
1600 |
|
|
Maximum torque speed(rpm) |
2800 |
|
|
Noise outside one meter(dB) |
99 |
|
|
Minimum fuel consumption at full load(g/kW.h) |
200 |
|
|
Emission standard |
Euro 2 |
|
|
Accessories |
Air dryer, engine noise reduction board, electric flameout |
|
Gearbox |
WLY6T51(110), 6 Forwarder,manual type |
|
Steering Gear |
power steering |
|
Tire |
7.00R16 , 6+1 Spare tire |
|
Clutch |
Clutch assist |
|
Brakes |
Spring brake,exhaust brake |
|

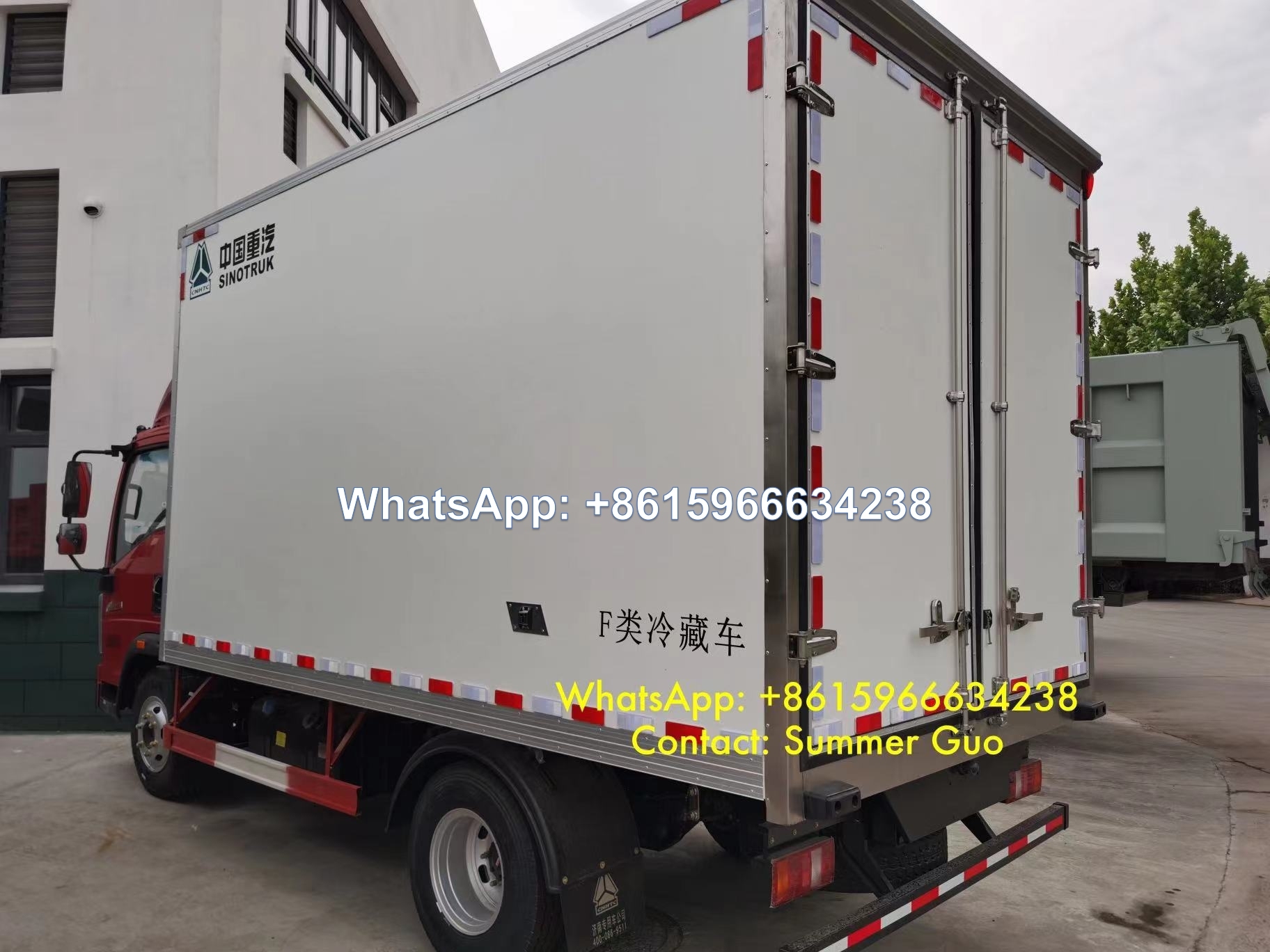

Van body |
|
|
Material of box |
Glass fiber reinforced plastics,Patterned aluminum floor |
|
Thermal insulation |
Polyurethane foam,8cm thickness |
|
Dimension |
4200x2100x2100mm |
|
Door |
Rear door open |
|
Refrigeration unit brand |
Thermo King brand or Carrier Brand for choice |
|
Temperature |
-18℃-0℃ Adjustable |
