Chassis |
|||
|
Vehicle model |
|

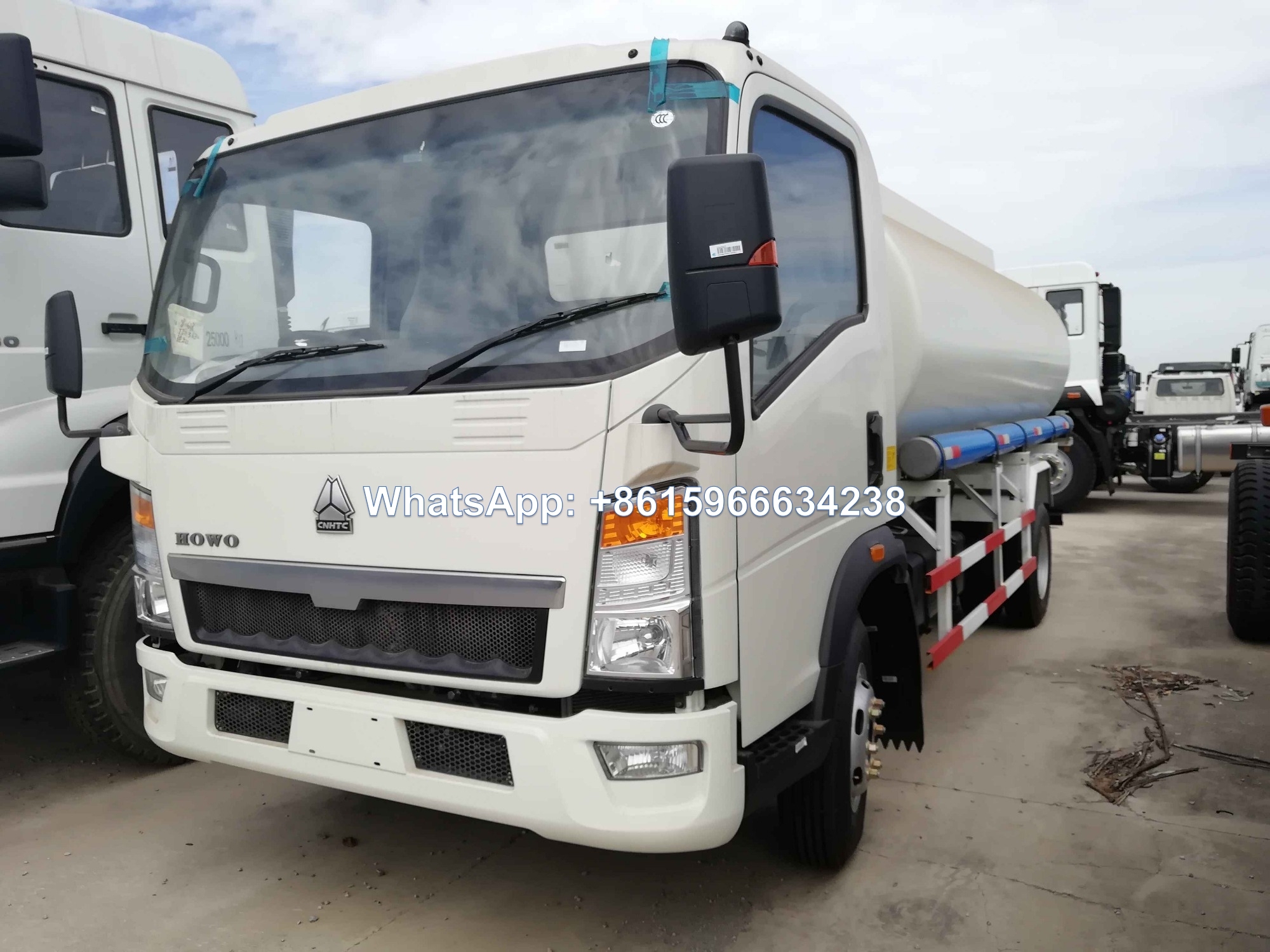

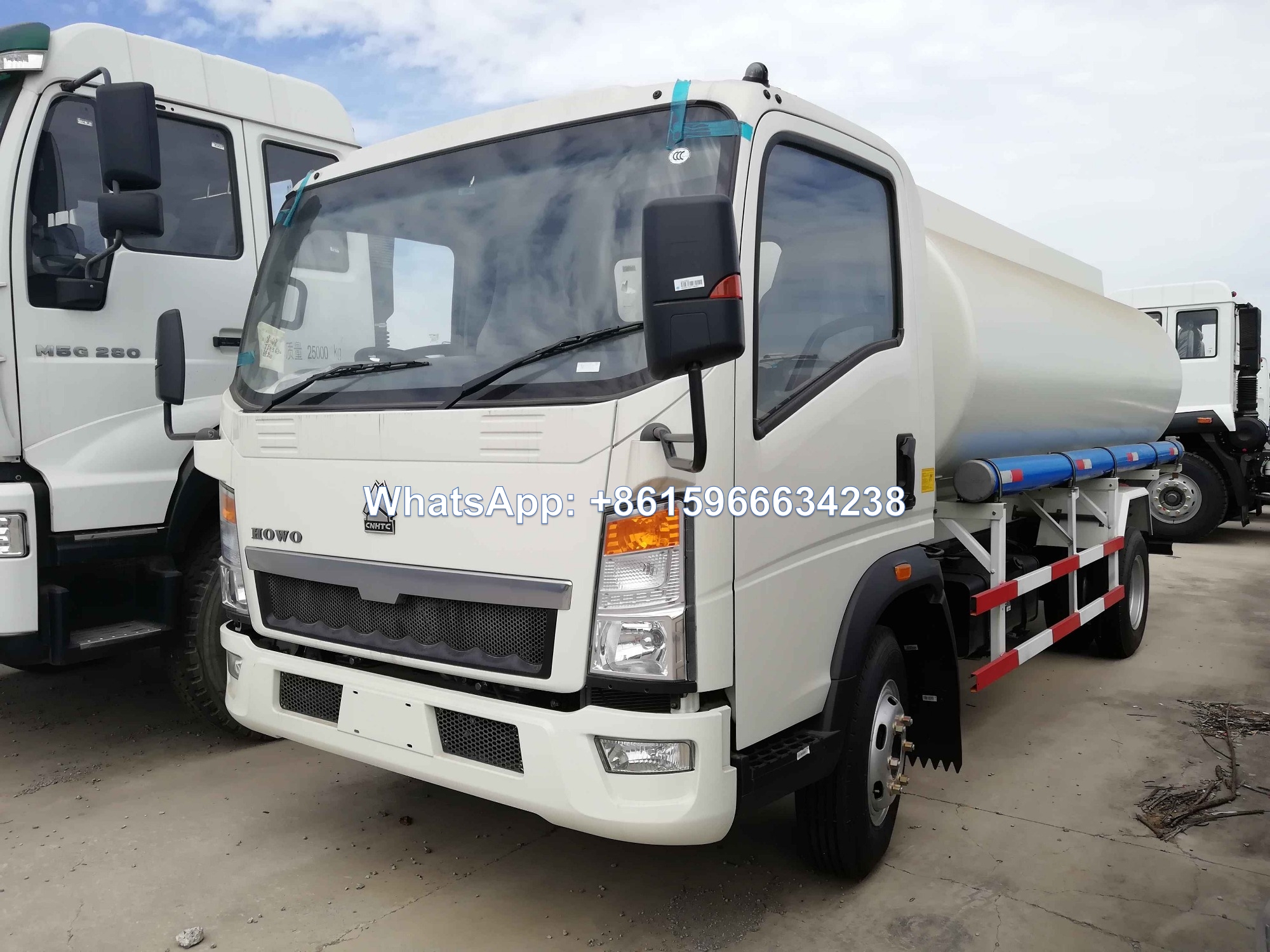

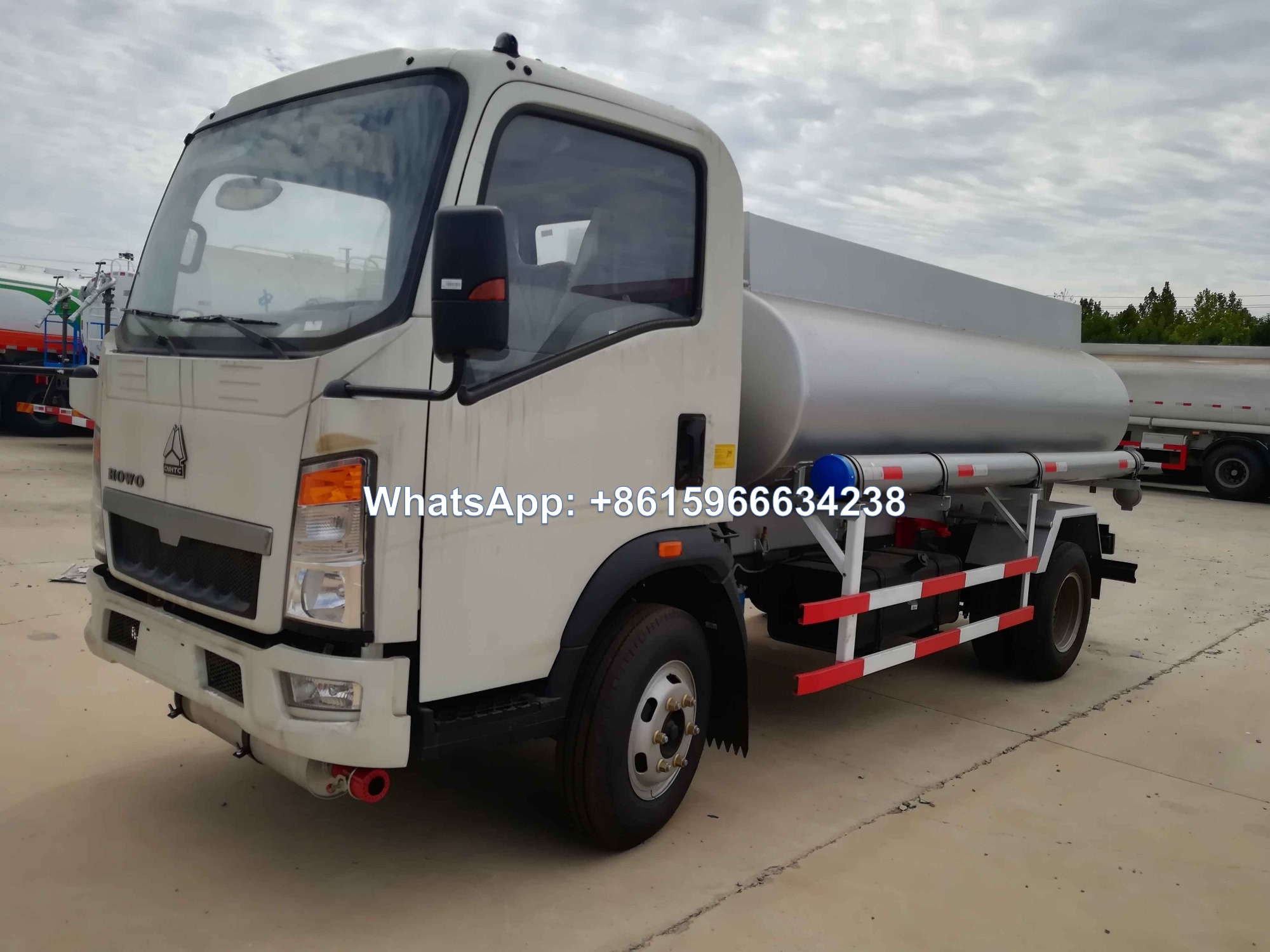

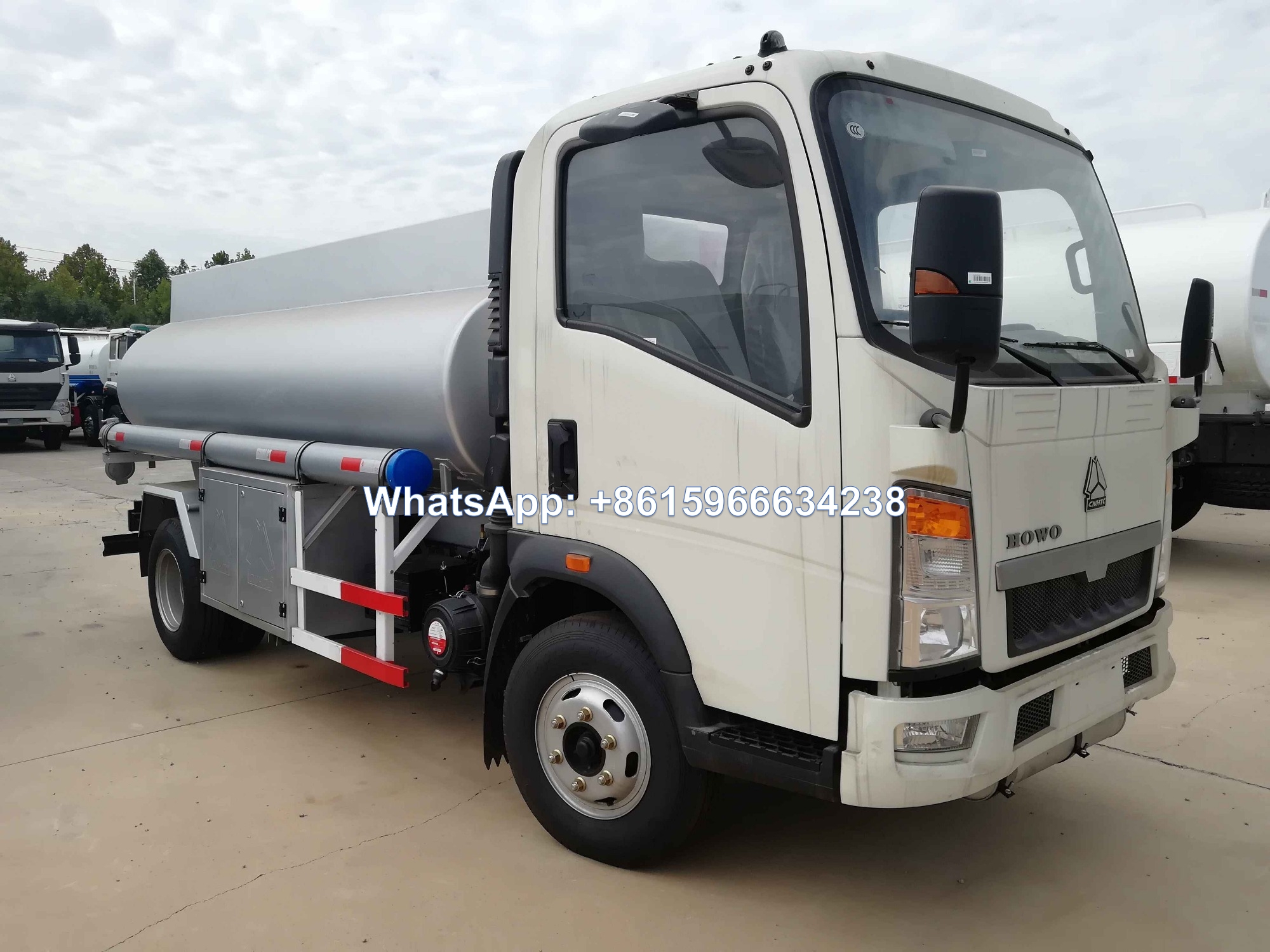

5000Liter RHD HOWO 4*2 Fuel Tank Truck |
|
|
Chassis model |
|
ZZ1087 |
|
|
Driving model |
|
Left or Right hand drive |
|
|
Overall dimensions |
mm |
6995×2500×3200(mm) |
|
|
Cube Weight |
|
4150 |
|
|
Payload |
7500 |
||
|
Wheel base |
mm |
3800 |
|
|
Exhaust/hp |
ml/ps |
3225/88 |
|
|
Max speed |
km/h |
90 |
|
|
Tire specification
|
7.50R16 |
Engine type
|
CY4102, 120hp |
|
Traction system
|
4*2 |
Transmission
|
6-speed with over drive |
|
Number of axles
|
2 |
Axle Load(kg)
|
2400/7200 |
|
Engine |
Chaochai ,diesel,6-cylinder in-line with water cooling |
||
|
Tank Body |
|||
|
Shape |
Mono block Cylinder |
||
|
Total Volume(m3) |
5CBM |
||
|
Tanker Body Material |
5mm carbon steel |
||
|
End plate |
5mm carbon steel |
||
|
Manhole cover |
Aluminum manhole cover, 500mm ,1 set with 1 breather valve |
||
|
Bottom Valve |
1 set |
||
|
Discharging valve |
1 set 80mm discharging valve |
||
|
Tire |
7.50R16 with one spare tire, total 7 pieces |
||
|
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint |
||
|
Fire Distingwish |
2 sets |
||
|
Accessories |
One standard tool box |
||
